Paterson Paterson Super System 4 Developing Tank 2-Reel (AGO-Modified Funnel) Bench equipment
EquipmentPaterson / PATE-ACCTANK-2-REEL

Paterson Super System 4 Developing Tank 2-Reel (AGO-Modified Funnel)

Universal developing tank / 2 x 35mm or 1 x 120 / AGO-modified funnel included

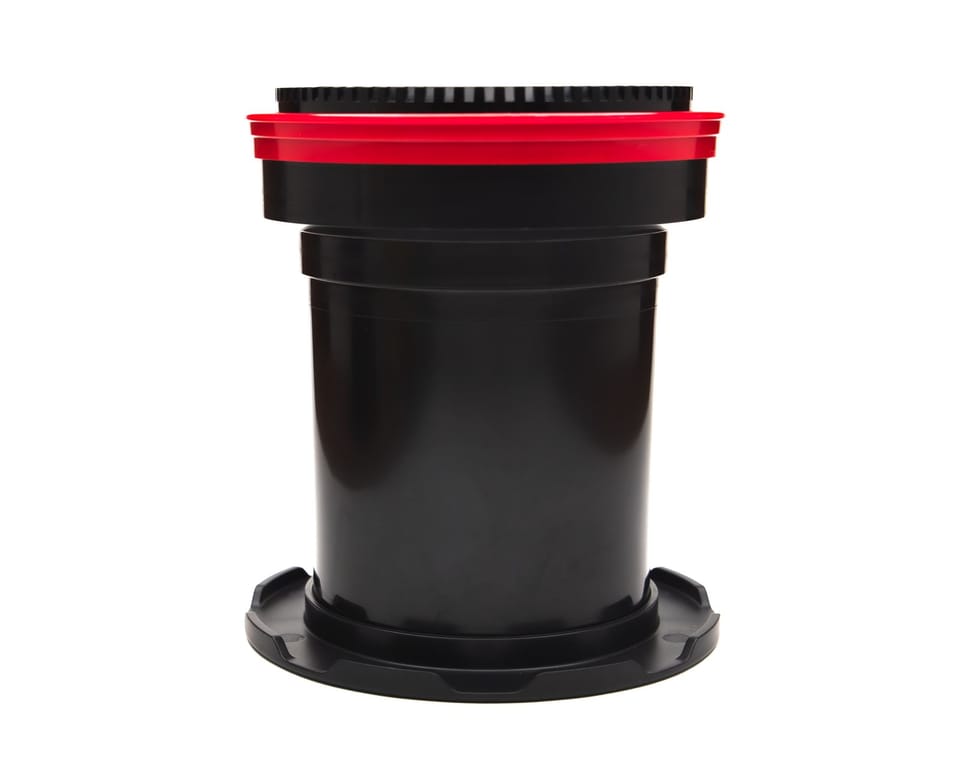

The Paterson Super System 4 two-reel universal tank (PTP115), supplied with an AGO-modified funnel: three holes in the side of the funnel, as AGO operation requires, so the tank can go on an AGO Film Processor exactly as it arrives. It takes two 35mm rolls or one 120 roll, and 127 and 220 load onto the same reels. It is also an ordinary Paterson tank, so hand inversion development works just as well.

Unit price¥5,400（税込）+54 pt
On handSold out
More inEquipment
Product codePATE-ACCTANK-2-REEL
TypeUniversal developing tank, 2-reel (PTP115)
Capacity2 x 35mm, or 1 x 120; 127 and 220 load onto the same reels
Chemistry volume350 ml minimum with AGO
FunnelAGO-modified funnel included: three holes in the funnel side, drilled by Vintage Visual, no drilling required
CompatibilityAGO Film Processor, horizontal (rotary) or vertical (stick) agitation; time compensation runs in rotary mode only. Also usable for hand inversion

Overview

In the box: the tank body, the centre column, two Paterson reels that adjust from 35mm to 120 width, the watertight lid, the agitation rod, and the AGO-modified funnel. Vintage Visual has already drilled the three holes AGO operation requires, so there is no drilling for you to do. With AGO, the minimum chemistry volume for this tank is 350 ml; hand inversion needs more, because the film has to stay fully covered. Rotary (horizontal) agitation uses up to 60% less chemistry than traditional vertical or inversion agitation methods. On AGO the tank can run either way: horizontally for rotary agitation, or vertically with the agitation stick for chemistry that does not tolerate continuous agitation. One point worth knowing: AGO's time compensation is active in rotary (horizontal) mode only. In vertical / stick mode the temperature probe does not sit in the liquid, so compensation is switched off. The reels must be completely dry before you load film, so rinse the tank and dry it thoroughly after every session. This is the same tank that is supplied in the AGO complete kit, which makes it an easy second tank if you already own an AGO.
