Vintage Visual REEL Super 8

Overview

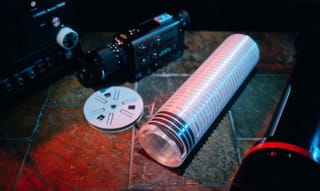

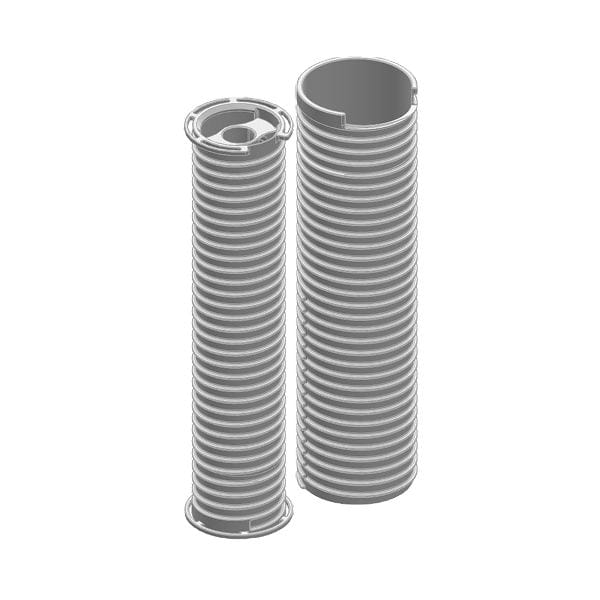

In the box: one Super 8 reel, a roller base used both for loading the film in complete darkness and for hand-rotary development, and drying clips for hanging the film afterwards. It fits the Paterson Super System 4 Multi-Reel 8 tank (PTP118) only — smaller Paterson tanks will not take it — and one reel holds one standard 50 ft / 15.24 m cartridge. Chemistry is the figure to plan around: 700 ml is enough when the AGO Film Processor turns the tank, while inversion or hand-rotary agitation without the AGO needs at least 2,350 ml. Note that the AGO's automatic time compensation runs in rotary (horizontal) mode only; in vertical stick-agitation mode the temperature probe does not sit in the liquid, so compensation is switched off. The reel handles B&W, C-41 and E-6, and for B&W reversal (Scala process) the re-exposure step is made through the translucent reel body with a light source inside — Vintage Visual's LED Light for Super 8 is a separate product. Running any Paterson tank on the AGO also calls for the modified funnel, with three holes drilled in its side. That funnel is included with every AGO Film Processor; Vintage Visual supplies a drilling template with the processor as well, and sells the pre-modified funnel on its own.
