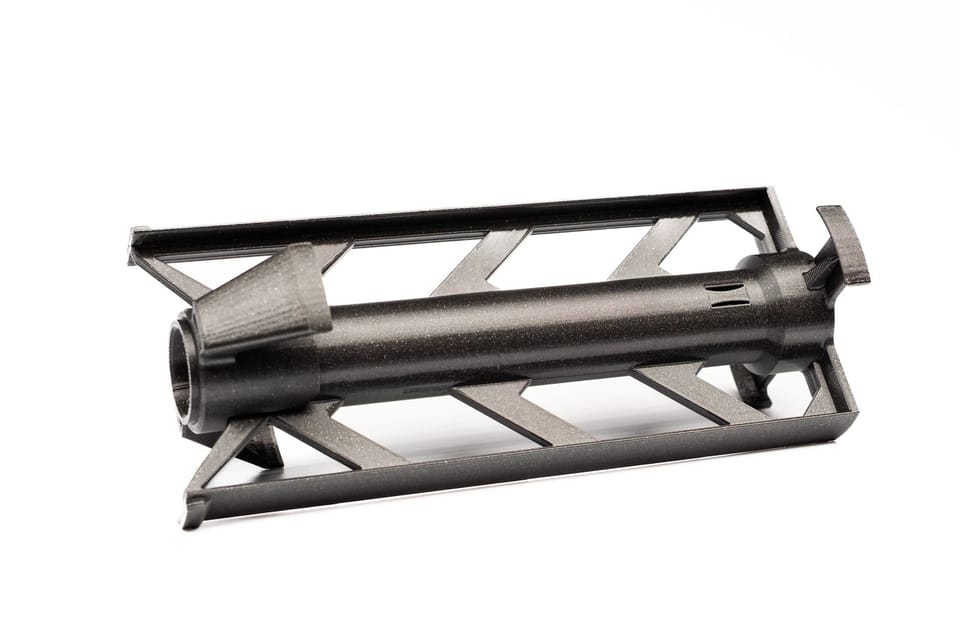

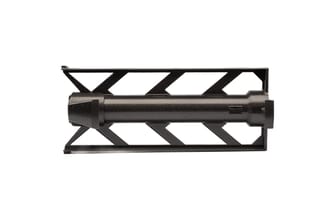

Vintage Visual REEL 5x7

5x7 inch & 13x18cm sheet film reel / 2 sheets per reel / for Paterson 5- and 8-reel tanks

A developing reel for 5x7 inch and 13x18cm sheet film, holding two sheets at a time. It can be run in the AGO Film Processor or used with ordinary hand agitation, for photographers developing large format sheet film at home.

Unit price¥12,200（税込）+122 pt
On handSold out
WIKIGuides & troubleshootingOfficial wiki ↗More inEquipment
Product codeVINT-ACCREEL-5X7
TypeDeveloping reel for sheet film
Formats5x7 inch / 13x18cm sheet film
Capacity2 sheets per reel
CompatibilityPaterson Super System 4 PTP117 (5-reel) or larger, including PTP118 (8-reel); AGO Film Processor or hand agitation
Minimum chemistryAGO rotary: 350ml (PTP117) / 500ml (PTP118); hand vertical agitation: 1350ml per reel

Overview

The reel is made for Paterson Super System 4 tanks in the 5-reel (PTP117) and 8-reel (PTP118) sizes; a PTP117 or larger tank is required, so the smaller 1-, 2- and 3-reel tanks will not take it. Sheets load emulsion-side inward between the columns and slide down, then the top holder is attached and pressed — one click for 13x18cm, two clicks for 5x7 inch. Developed horizontally in the AGO Film Processor, the minimum chemistry is 350ml in a PTP117 and 500ml in a PTP118; the same reel agitated vertically by hand needs 1350ml. Note that the AGO's time compensation, which adjusts development time as the chemistry temperature drifts, is active only in rotary (horizontal) mode — with vertical stick agitation the temperature probe does not sit in the liquid, so compensation is switched off. The reel can also be placed inside the Paper5 reel as an insert, splitting it into two sections, which is the correct configuration for developing 5x7 RA-4 or black-and-white darkroom prints. Supplied as the reel only — tank, AGO processor and chemistry are sold separately.
